Add-on Satellite for use with Orbi RBK863SB Systems only.

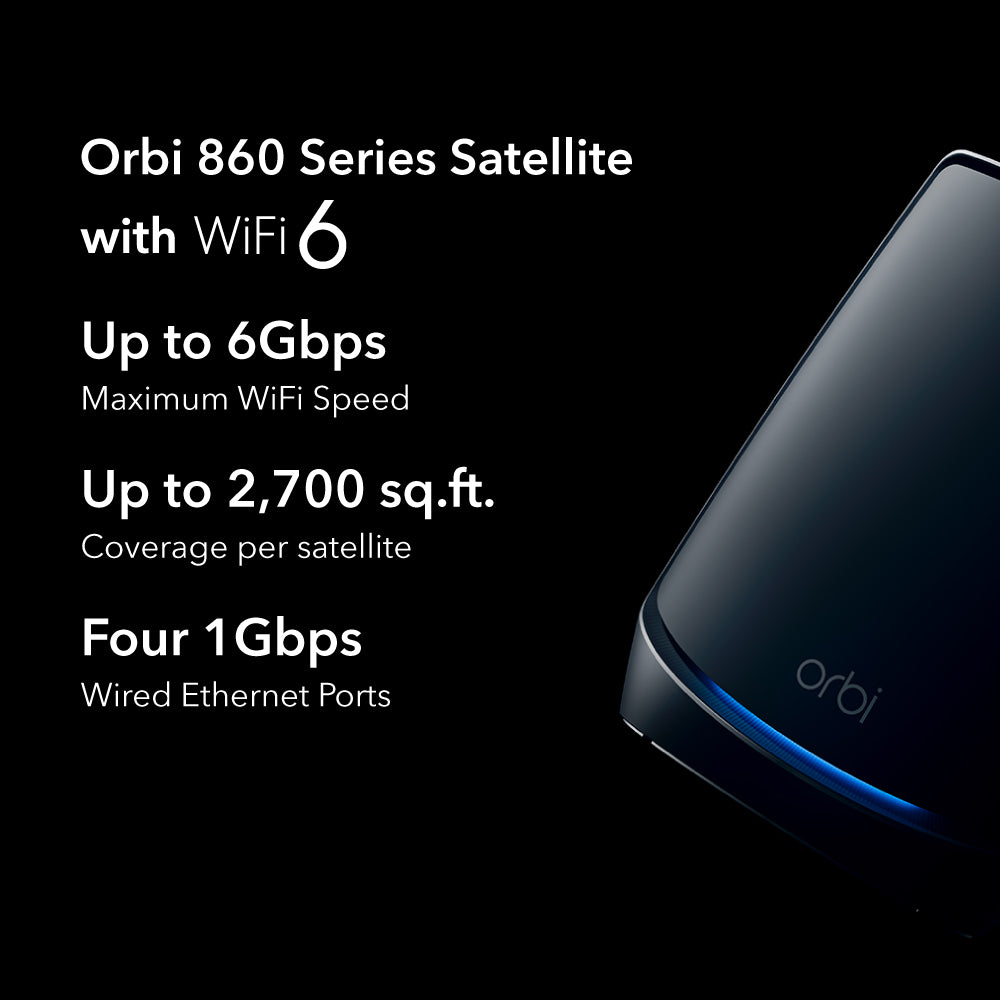

- Extend high-performance Orbi 860 WiFi with up to 2,700 sq. ft. of additional coverage, including front & backyards
- NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous-generation satellites
- Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence

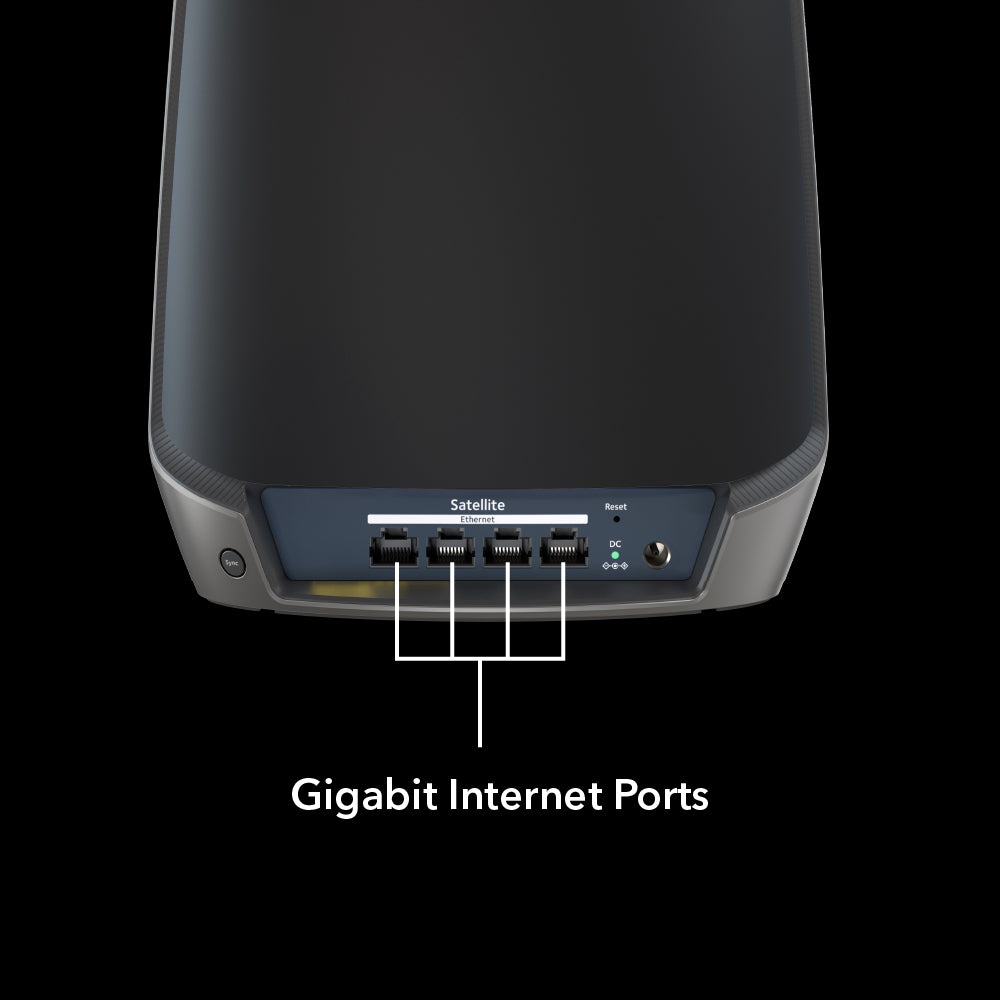

- Four high-speed 1Gpbs wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
- NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provide Orbi 860 router-to-satellite communication for max speeds
maximum WiFi speed
1Gbps Ethernet Ports
Never sacrifice speed

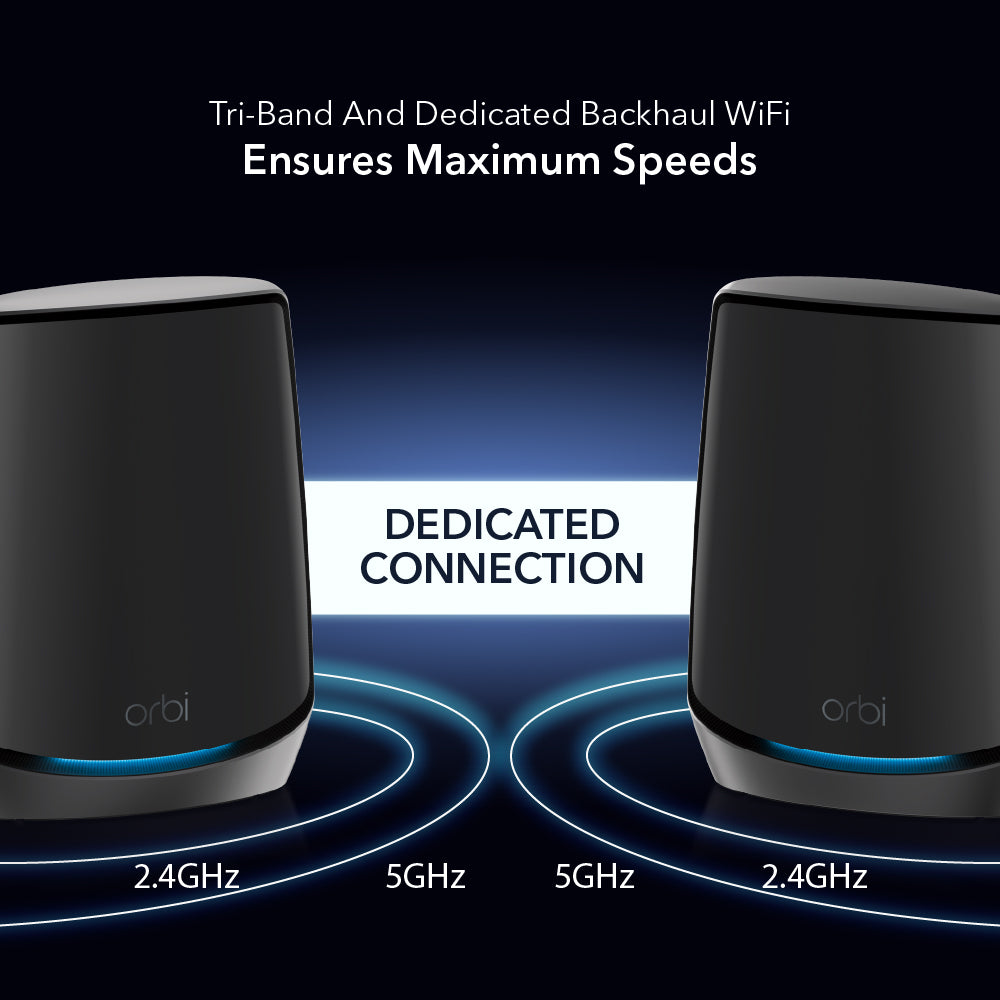

NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage

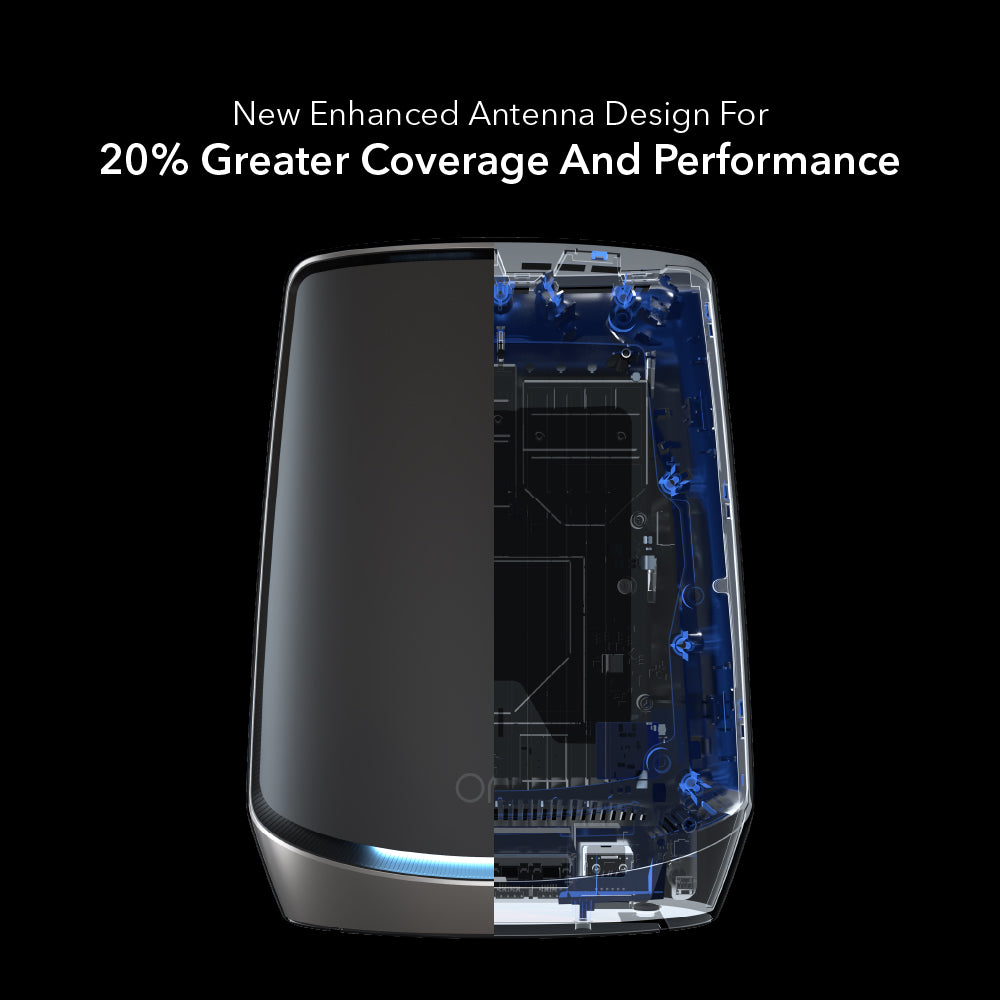

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi coverage across your entire property - inside and outdoors.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data-intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it simple to install your Orbi and get it up and running in less than 15 minutes. Add Orbi Satellites to your system with just the push of a button. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
2,700 sq. ft.
High-speed internet connection to existing modem or gateway
Standards-based WiFi Security
802.11i, 128-bit AES encryption with PSK
Guest WiFi Network
Easy to setup separate & secure Internet access for guests
AX6000 (2400 + 2400 + 1200Mbps)†
Quad-core 2.2GHz processor
512MB NAND Flash and 1GB RAM
Eight (8) high-performance internal antennas with high-power amplifiers
Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports each
Height: 10 inches (254mm)
Width: 7.5 inches (190.5mm)
Depth: 2.8 inches (71.12mm)
Weight: 2.86 lbs (1.29kg)
One (1) Orbi Satellite (RBS860B)
19V/3.16A power adapter
Quick Start Guide
AX6000 Tri-Band WiFi
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Country of Origin
