Nighthawk® AX12 12-Stream AX6000 WiFi Router supports Wi-Fi 6 (802.11ax) - the latest WiFi standard with four times increased data capacities to handle today and tomorrow’s growing home network.
Blazing-fast combined WiFi speeds up to 6Gbps and an AX optimized 64bit 2.2GHz quad-core processor powers smart home applications, ultra-smooth 4K UHD streaming, online gaming, and more.
AX WiFi features Orthogonal Frequency-Division Multiple Access (OFDMA) that dramatically increases network capacity as compared to today’s WiFi and reduces latency for a better WiFi experience making it ideal for a household with many WiFi devices.
Plus, eight high-performance antennas amplify WiFi signals for maximized range and reliable coverage. Nighthawk AX12 is also NETGEAR’s first home router with a 5Gig port.
Faster file transfer and
uninterrupted connections
5 Gigabit Ethernet ports for faster
file transfer and uninterrupted
connections.
Combine two (2) gigabit Ethernet
ports to further improve the
aggregated file transfer speed.
1 Multi-Gig Ethernet port for 5G/2.5G/1G connectivity.
Stream in 4K UHD with 12
WiFi Streams
Increase your network capacity to
handle today and tomorrow’s
growing home network.
12 WiFi streams means more
available WiFi bandwidth and less
congestion for all the devices on
the WiFi network
WPA3 Security Standard
State-of-the-art security is provided by the latest industry standardized system support for Wi-Fi CERTIFIED WPA3
Reliable WiFi connection
and improved range

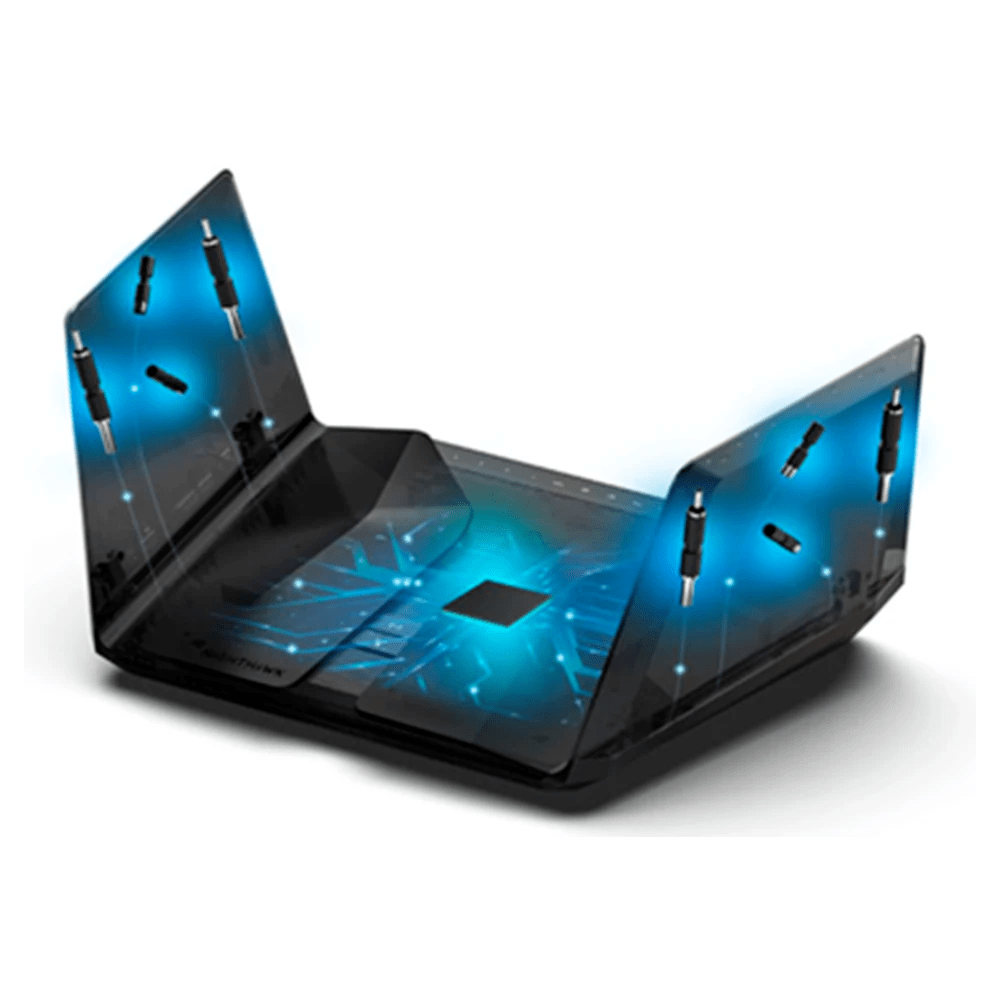

Eight (8) high-performance
antennas extend wireless range
coverage indoors and out.
Antennas come pre-optimized for
best WiFi performance.
Introducing Wi-Fi 6 - The New Standard of WiFi
What is Wi-Fi 6 (also known as AX WiFi)?
The demand for data is increasing faster than the capability of
current WiFi standards.
This standard of WiFi provides faster speeds and a substantial
increase in network capacity, allowing more devices to connect to
the network at the same time. Wi-Fi 6 is especially ideal if you
have more than 20 devices connected on one network.
More Efficient WiFi for More Devices
When multiple users simultaneously stream video, download,
play games, or run their smart home appliances, the network
loses efficiency and performance suffers.
Wi-Fi 6 is built to handle more wireless capacity for your growing
home network.

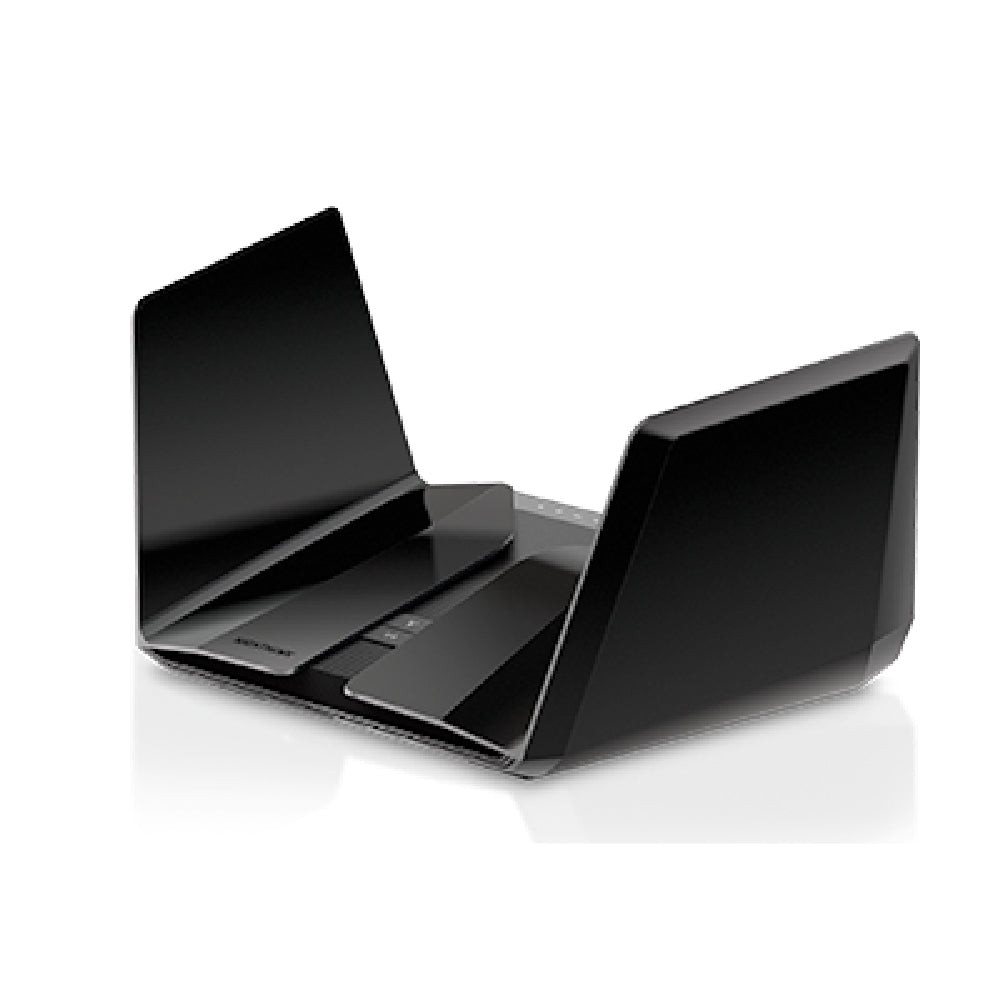

NETGEAR Nighthawk AX12 Wi-Fi 6 Router
(RAX120)
Faster WiFi, Better Performance - 12-Stream WiFi with up to 1.2Gbps + 4.8Gbps for ultra-fast wireless speeds.

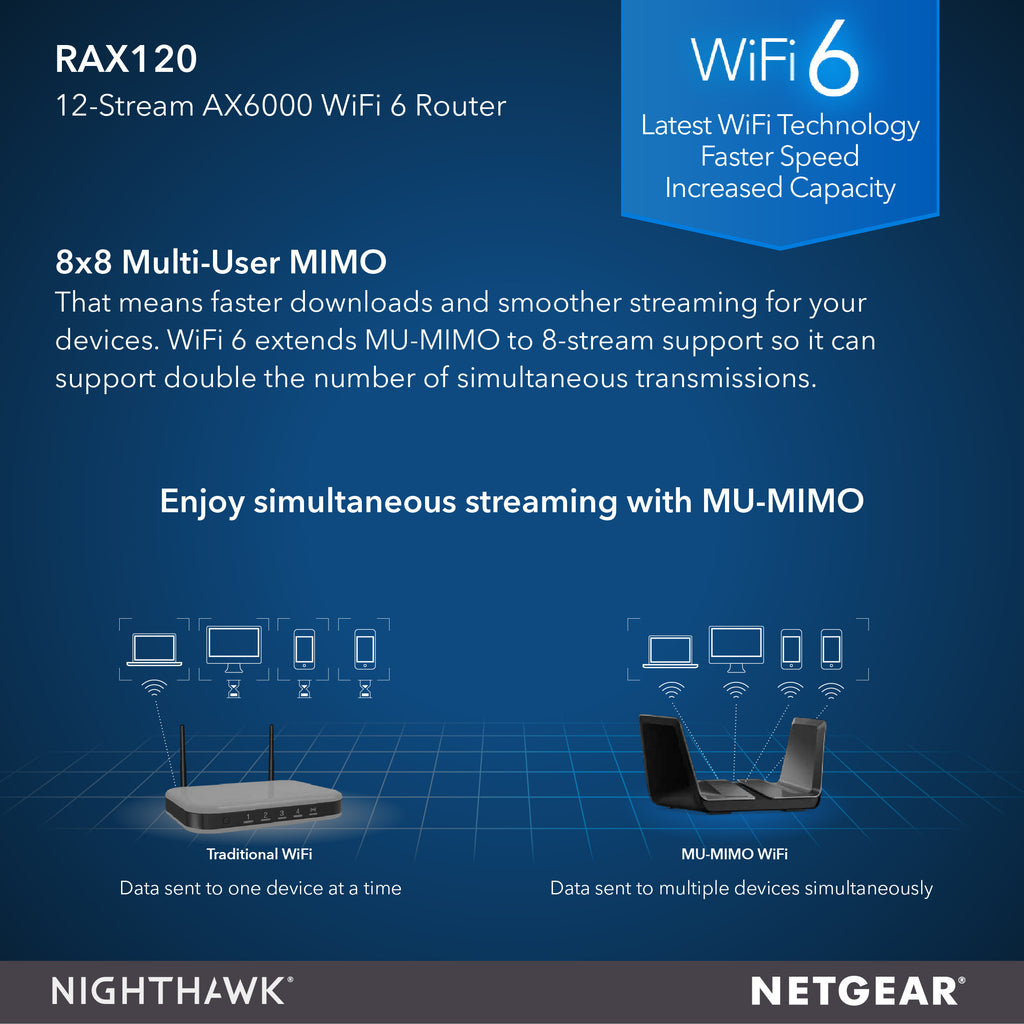

More WiFi for More Devices - Uplink and Downlink OFDMA allows efficient data transmission for more devices at the same time.
Up to 24 simultaneous WiFi clients
Maximized Range - Eight (8) high-performance antennas extend wireless range coverage indoors and out.
Works with Existing WiFi Devices - Supports all current WiFi devices and is backward compatible with older devices.
MODEL | Nightawk AX4 Wi-Fi 6 Router (RAX40) | Nightawk AX4 Wi-Fi 6 Router (RAX120) | Nightawk AX4 Wi-Fi 6 Router (RAX200) | ||
---|---|---|---|---|---|
WiFi Specification | 600Mbps + 2.4Gbps | 1.2Gbps + 4.8Gbps | 1.2Gbps + 4.8Gbps+ 4.8Gbps | ||
Ethenet Ports | 5 Gigabit Ethernet Ports | 5 Gigabit Ethernet Ports | 5 Gigabit Ethernet Ports, 2x1 Gigabit WAN aggregation | ||
Link Aggregation | N/A | 1+1 Gigabit | 1+1 Gigabit, 1+1 WAN | ||
Multi-Gig Port | N/A | 5GbE port (CAT 5 compatible) | 2.5GbE port (CAT 5 compatible) | ||
Ideal Use | WiFi performance for the
smart home. Ideal for medium to large homes | Maximum WiFi performance for the smart home. Ideal for very large homes | Maximum WiFi performance for the gaming, streaming and high-bandwidth applications. Ideal for very large homes | ||
USB Ports | 2x USB 3.0 | 2x USB 3.0 | 2x USB 3.0 | ||
Antennas | 2 | 8 | 8 | ||
Processor | Dual-core | Quad-core 2.2 GHz | Quad-core 1.8GHz | ||
RAM | 256 Flash: 1GB RAM | 512MB Flash: 1GB RAM | 512MB Flash: 1GB RAM |
Specifications
WiFi Performance
AX6000 WiFi
WiFi Range
Very Large Homes
WiFi Band
Simultaneous dual-band 2.4 & 5GHz
Warranty Information
3-year Limited Hardware Warranty
Beamforming
Beamforming+ — boosts speed, reliability, and range of WiFi Connections for 2.4 and 5GHz
Physical Specifications
Dimensions: 31 x 19 x 4.5 cm
Weight: 3 lbs (1364g)
Number of USB Ports
Two (2) USB 3.0 ports
Processor
AX Optimized powerful 64bit quad-core 2.2GHz processor
Security
Latest WiFi Protected Access® (WPA3)
Guest network access — separate & secure
VPN Support — Secure access to your home network away from home
The automatic firmware update delivers latest security patches to the router
Package Contents
Nighthawk AX12/12-stream AX6000 WiFi Router
Ethernet cable
Quick start guide
Power adapter
System Requirements
Microsoft® Windows 7, 8, 10, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®
Microsoft® Internet Explorer® 11 or higher, Microsoft Edge
Google Chrome™ 55 or higher, Firefox® 45 or higher, Safari® 10 or higher

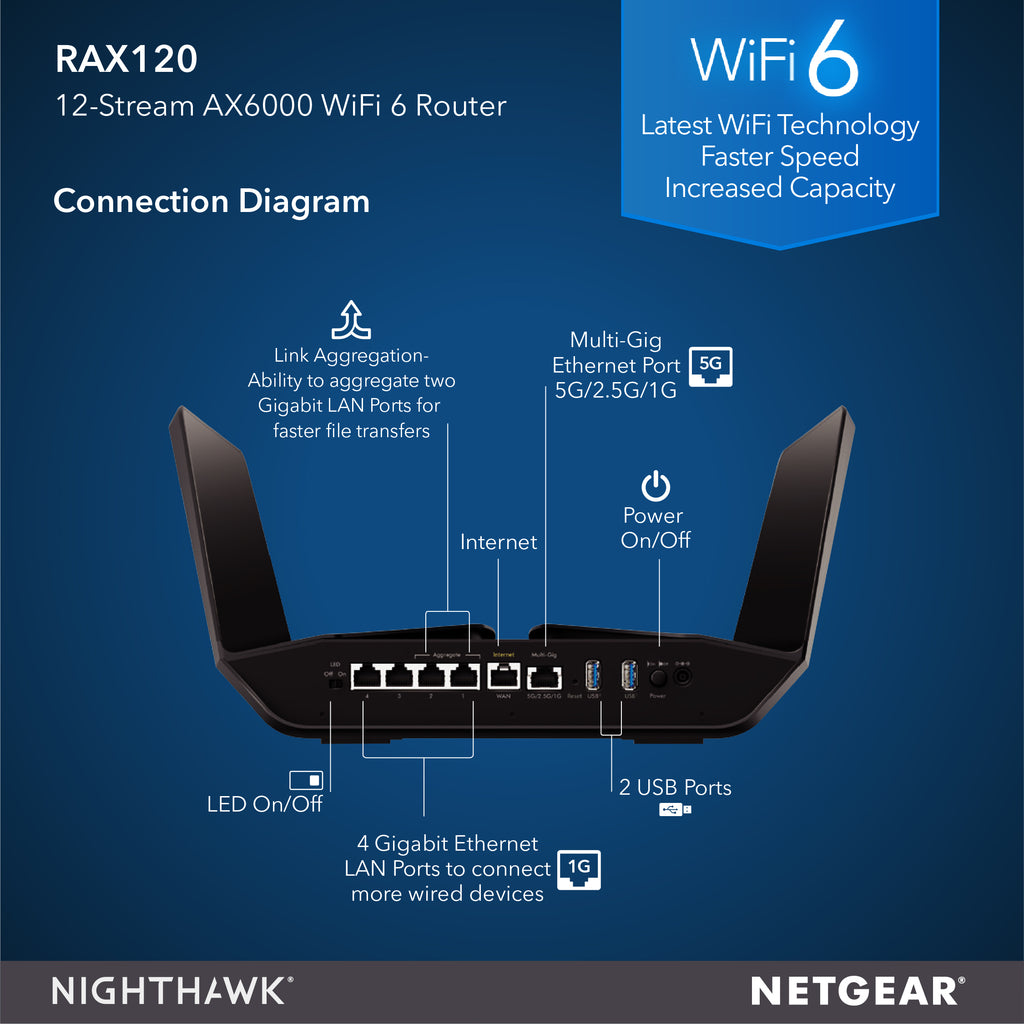

Number of Ethernet Ports
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
1 WAN & 4 LAN
Dual Gigabit Ethernet Port Aggregation
5G/2.5G/1G Multi-Gig Ethernet LAN port
WiFi Technology
802.11ax Dual Band WiFi (AX6000)
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1.2Gbps
5GHz AX: 8x8 (Tx/Rx) 1024 QAM 20/40/80/80+80MHz, up to 4.8Gbps
Backwards compatible with 802.11a/b/g/n/ac WiFi
Country of Origin
Taiwan
