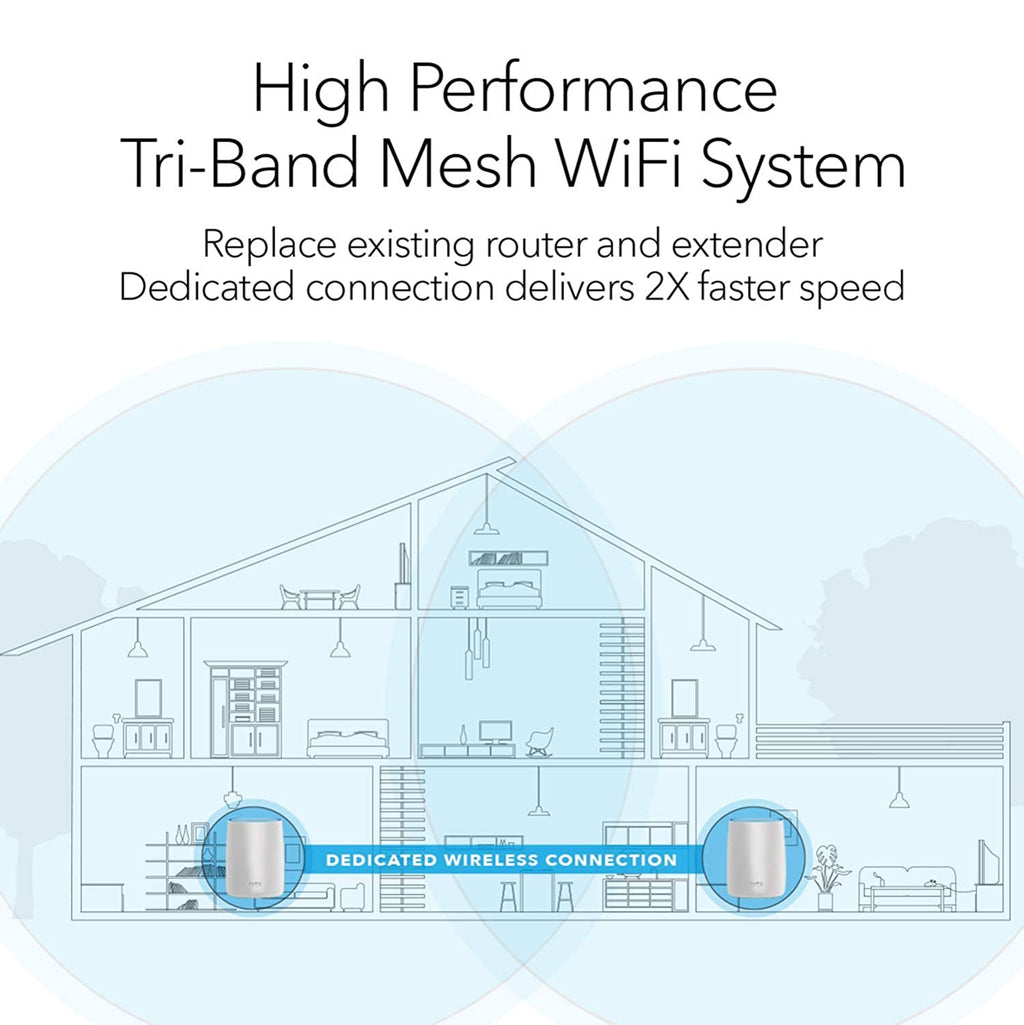

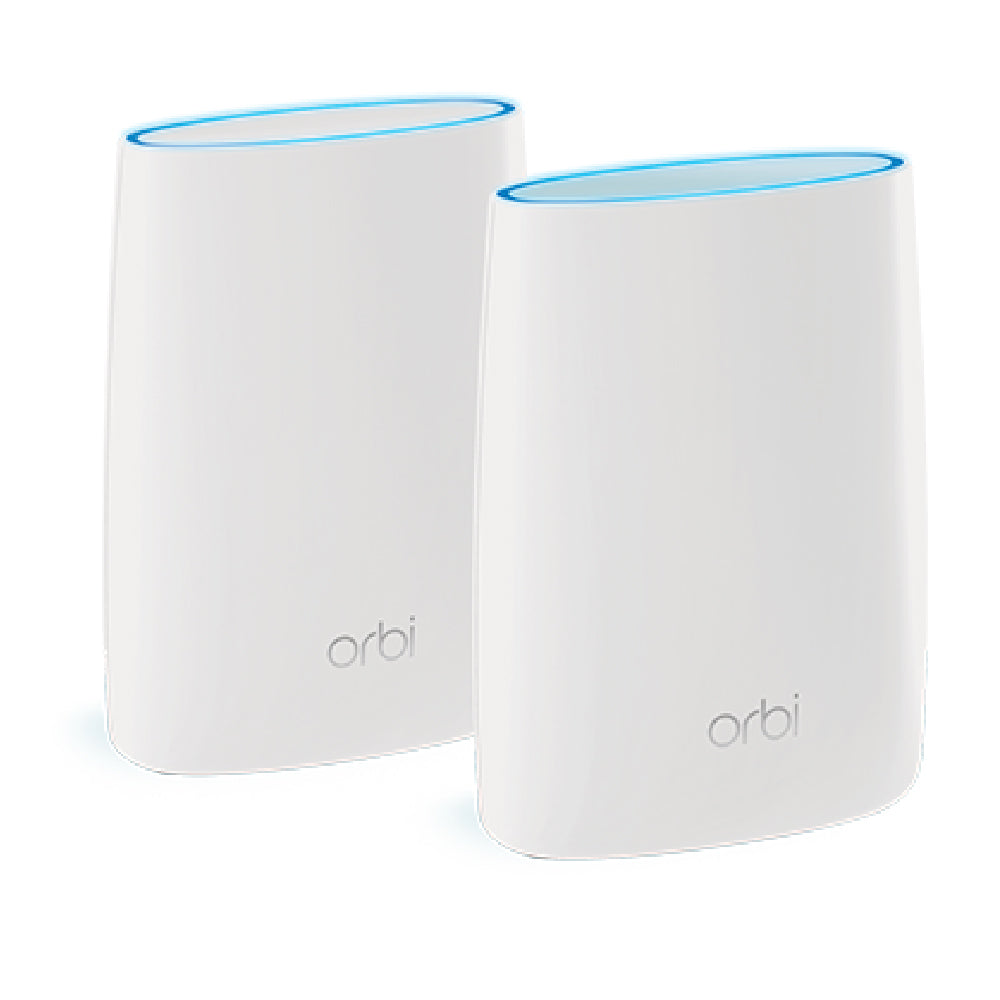

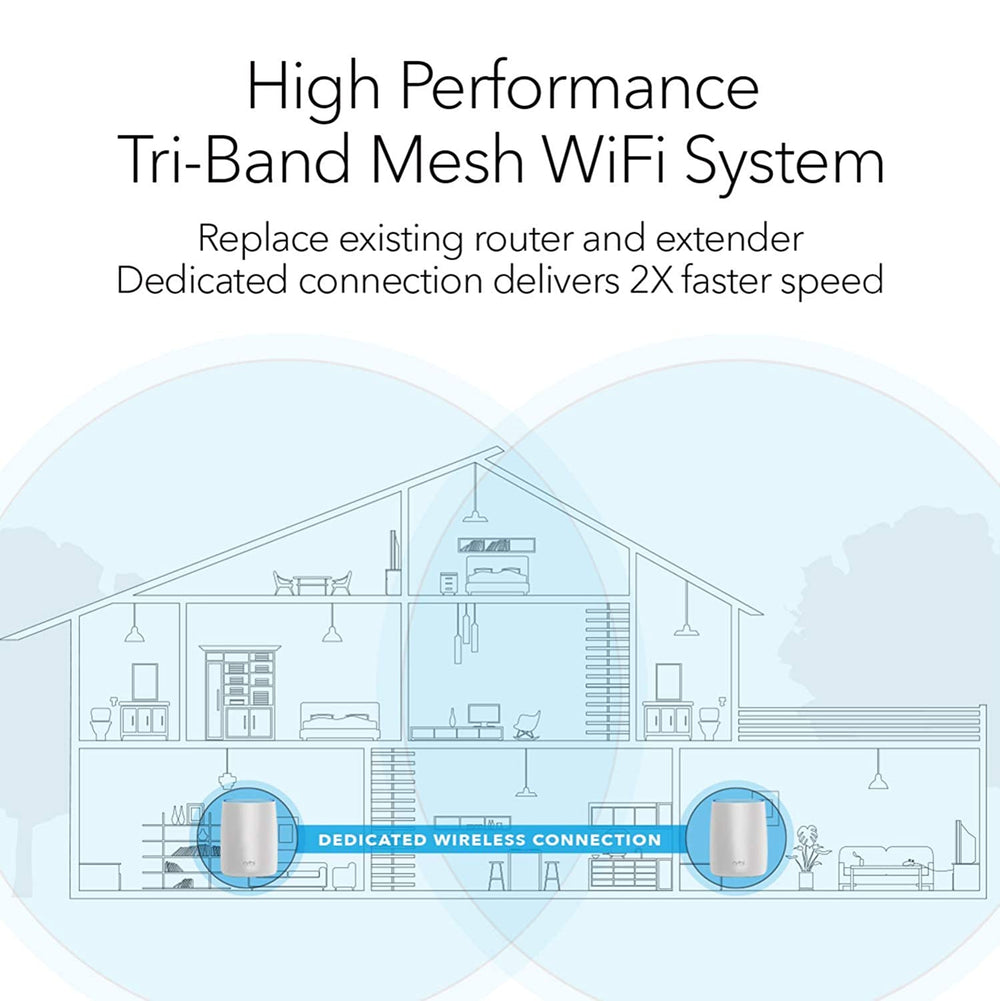

Ultra-performance Whole Home Mesh WiFi System, consisting of one Router and One Satellite delivers unparalleled WiFi coverage for all your devices, across all corners of your house.
Orbi creates one seamless network, so as you move from room to room, your signal won't drop, up to 350 sq meters with strong WiFi signals.
Innovative Tri-band WiFi helps maximize the Internet speeds available in your home. Enjoy better WiFi. Everywhere.
Mesh Wifi means you can add additional Orbi satellites to expand your network coverage, without losing out on bandwidth for your existing devices.

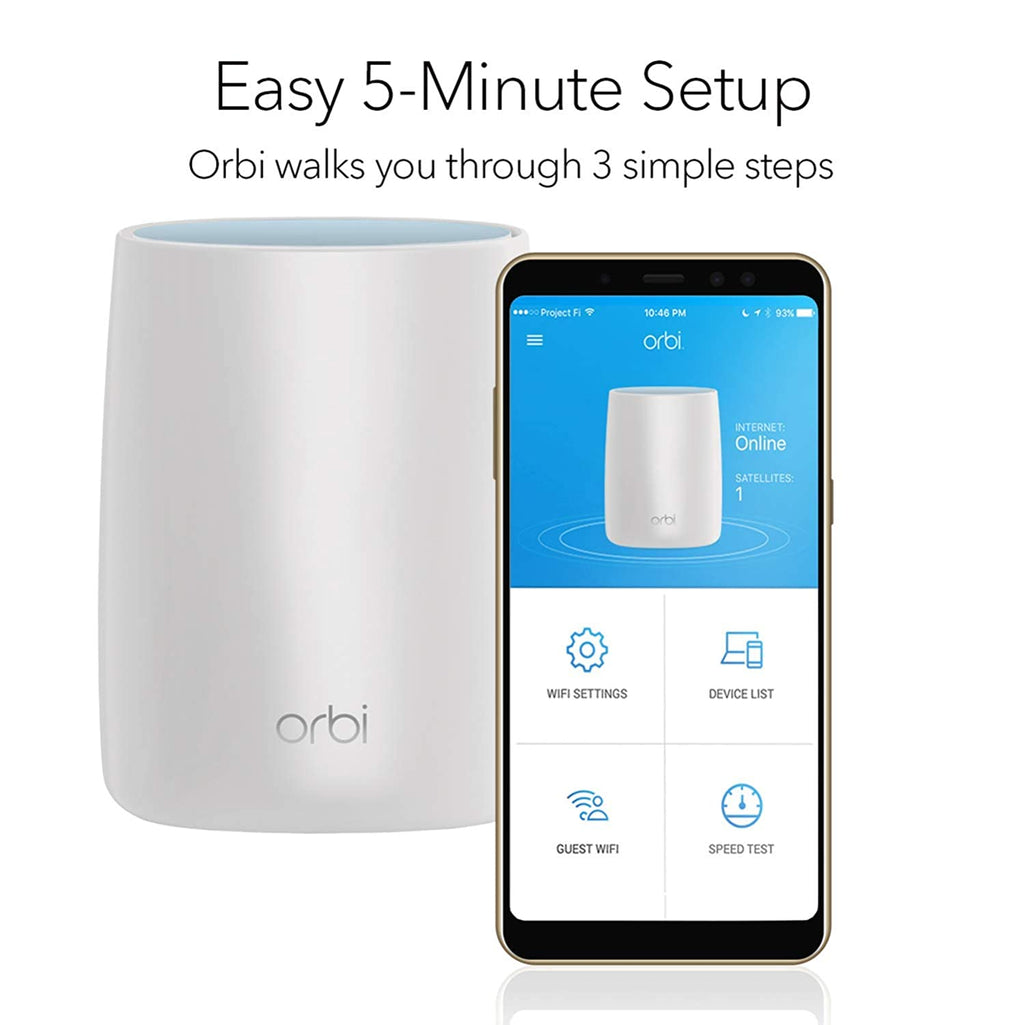

Quick & easy setup with the Orbi app–Pause WiFi, do a quick speed test, set up Smart Parental Controls, and much more.
Works with Amazon Alexa and the Google Assistant so you can use voice commands to control your home WiFi network.
Smart Parental Controls–A smart way for families to manage content and time online on any connected device. Guest Network–Easily set up a separate and secure WiFi network for visitors to use without sharing your home’s WiFi password.

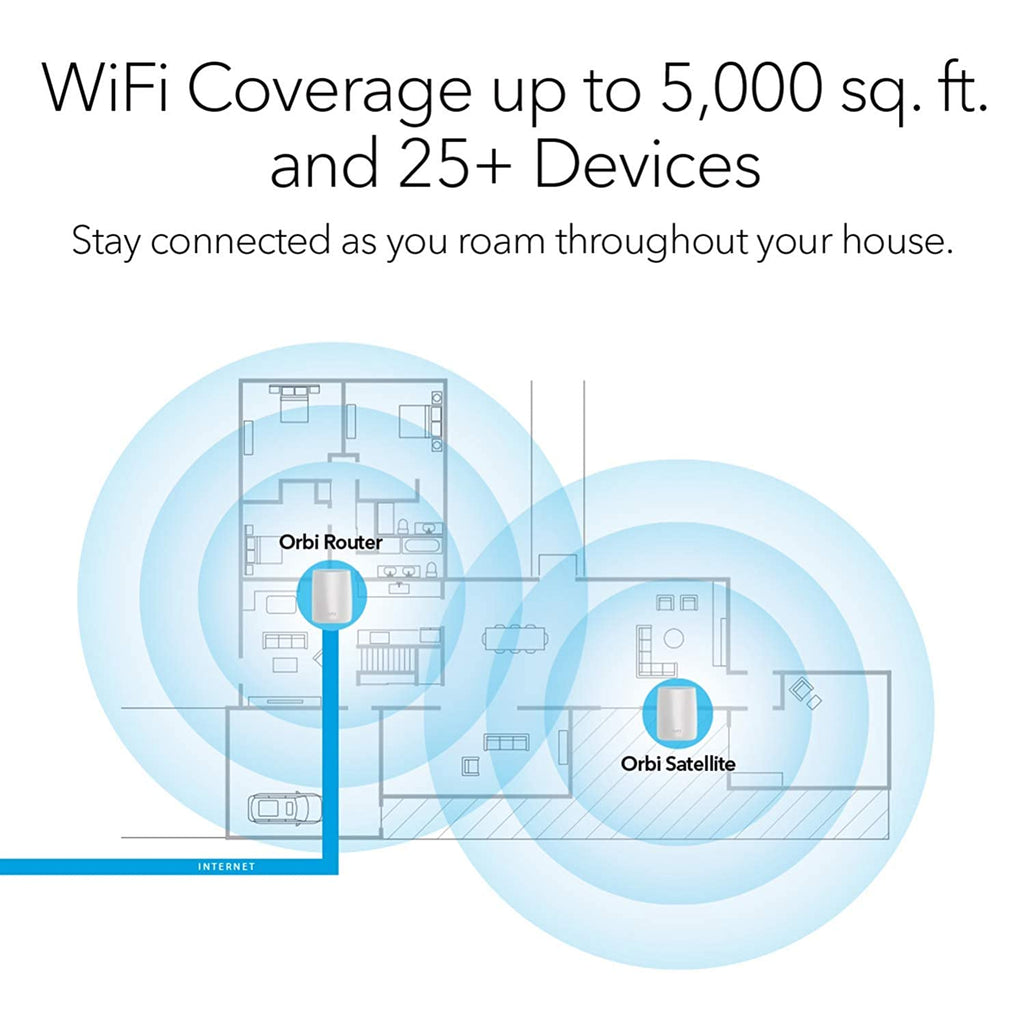

Whole Home Coverage - Upstairs and Downstairs
Eliminate deadzones throughout your whole home up to 5,000 square feet! Other WiFi systems lose speed and range over large distances.
Fast and reliable WiFi coverage
Connect all your WiFi devices without losing speeds! Freely roam around your home with uninterrupted streaming and downloading.
Parental Controls
Limit daily internet time for websites, apps, and more. Set individual filter levels for family members to match their age and interests.
Flexible connectivity options
Each Orbi device comes with 4 Gigabit Ethernet ports. This is ideal to hard-wire entertainment centers, game systems, and home offices for fast Internet speeds.
Expandable for more WiFi coverage
Easily add more Orbi satellites to your existing Orbi WiFi system for additional WiFi coverage. Indoor and Outdoor satellite options feed any need (sold separately).
Easily create a Guest Network
Be a good host and have your guests experience the best WiFi in town. Easily and securely share your home or Guest WiFi credentials.

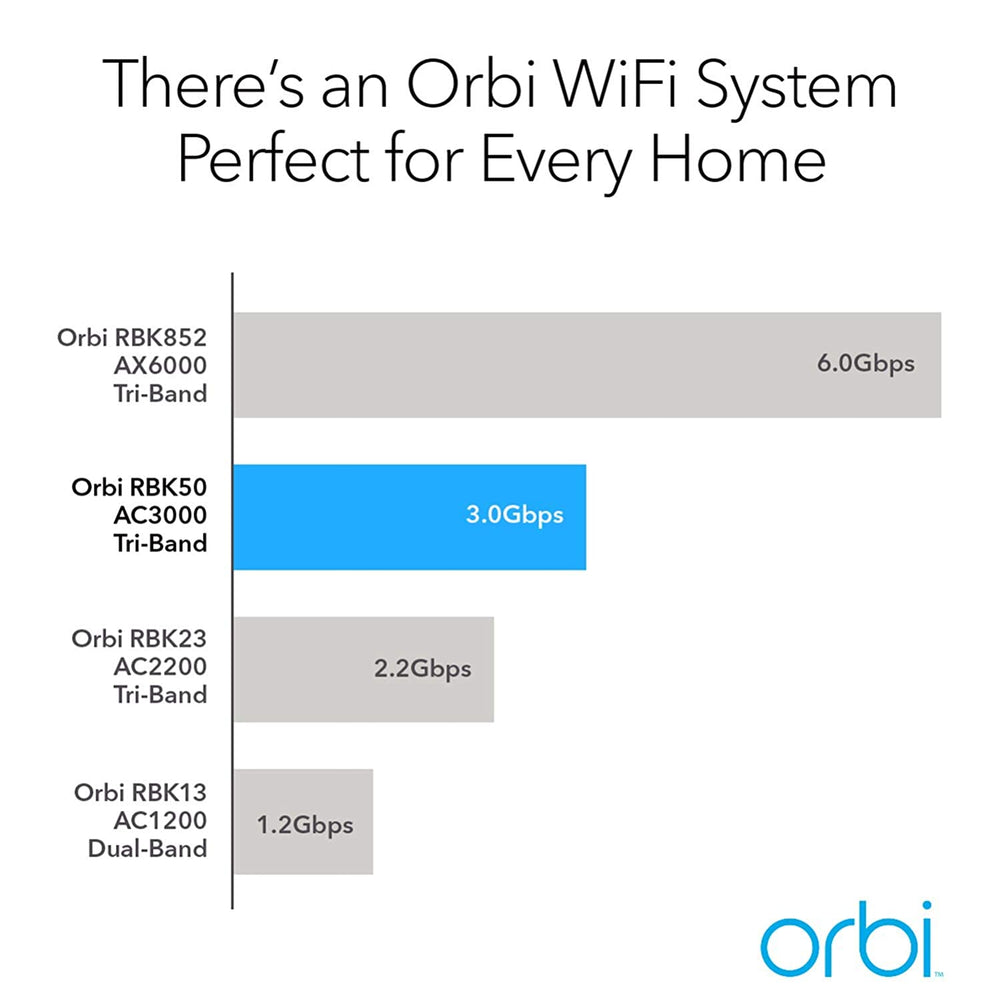

| MODEL | RBK50 | RBK53(S) | RBK752 | RBK753 |
|---|---|---|---|---|
| WiFi Coverage | Up to 4,000 sq ft | Up to 6,000 sq. ft | Up to 5,000 sq. ft
| Up to 7,500 sq. ft
|
| WiFi Speed | AC3000 (Tri-band) | AC3000 (Tri-band) | AX4200 (Tri-band)
| AX4200 (Tri-band)
|
| Combined WiFi Speed | Up to 3Gbps | Up to 3Gbps | Up to 4.2Gbps
| Up to 4.2Gbps
|
| Dedicated Backhaul | 4x4 (1733Mbps) | 4x4 (1733Mbps) | 4x4 (2400Mbps)
| 4x4 (2400Mbps)
|
| Daisy Chain | Yes | Yes | Yes | Yes |
| VLAN Tagging | Yes | Yes | Yes | Yes |
| AP Steering | Yes | Yes | Yes | Yes |
| Band Steering
| Yes | Yes | Yes | Yes |
| Ethernet Backhaul | Yes | Yes | Yes | Yes |
| Parental Control | Yes | Yes | Yes | Yes |
| Guest Login | Yes | Yes | Yes | Yes |
| Orbi App & Web
Interface Supported | Yes | Yes | Yes | Yes |
| Type of homes suitable for | Up to multi-storeys | Up to multi-storeys | Up to multi-storeys
| Up to multi-storeys
|
| Available WAN and LAN Ports
| 1 WAN & 3 LAN (R), 4 LAN (S) | 1 WAN & 3 LAN (R), 4 LAN (S) | 1 WAN & 3 LAN (R), 2 LAN(S) | 1 WAN & 3 LAN (R), 2 LAN(S) |
Specifications
Product Number
RBK50v2
WiFi Coverage
4,000 sq. ft.
Works with Amazon Alexa and the Google Assistant
Yes
AC3000 Tri-Band WiFi
- 2.4GHz (400Mbps) + 5GHz (866Mbps) for WiFi devices to connect to the Internet
5GHz (1733Mbps) dedicated WiFi link for faster data connections between OrbiRouter and Orbi Satellite
Physical Specifications (Router/Satellite)
Dimension: 6.7 x 3.1 x 8.9 in
Weight: 1.96lb

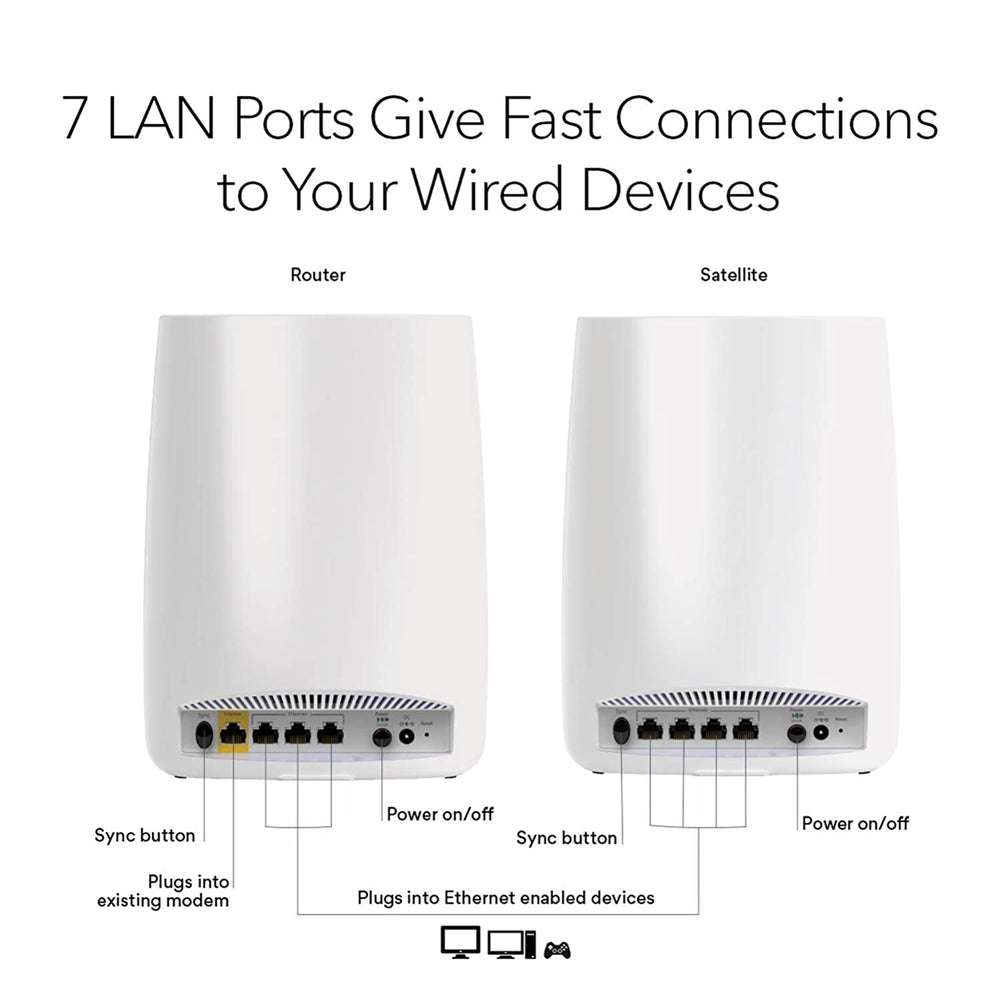

Port (Router)
Four (4) 10/100/1000Mbps Gigabit Ethernet ports
1 WAN and 3 LAN Gigabit Ethernet ports
Port (Satellite)
Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports
Memory (Router)
512MB NAND flash and 512MB RAM
Security
WPA/WPA2-PSK support
Guest WiFi Network is easy to set up separate & secure Internet access for guests
Circle® Smart Parental Controls to manage content and time online for all your devices
Orbi Router/Satellite (AX3000)
Six (6) high performance internal antennas with high-powered amplifiers.
Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
MU-MIMO capable of simultaneous data streaming to multiple devices
Powerful Quad-Core 710MHz processor
Package Contents
One (1) Orbi Router (RBR50v2)
One (1) Orbi Satellite (RBS50v2)
One (1) 2m Ethernet cable
Two (2) 12V/2.5A power adapters
Quick start guide
Warranty
3-year Limited Hardware Warranty
